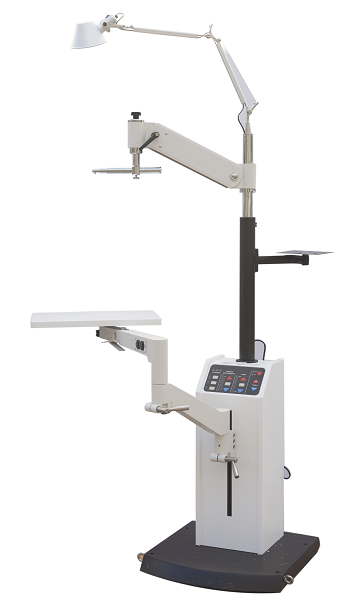

Mechanical Parameters
1.Phoroptor swing arm:Swing angle(up and down)±30°
Rotary arm:rotation angle 0°-300°
Up and down moving range:900mm~1500mm
Max load:30kgs
2.Projection arm:angle of rotation for rotation arm360°
The tray can be 360° rotation
Up and Down moving range:1030mm~1530mm
Max load:10kgs
3.Slip lamp arm:
Table size:350mm*200mm*25mm(Can be customized,maximum size is 700mm*400mm*40mm)
Max load:50kgs
Table rotational angle:The first rotary arm rotary arm rotates at an Angle0°-180°;
Table-board rotational angle:360°
Table movement range:Within a semicircle with a radius of 824mm;
Height adjustment range:716~1016mm
Electrical parameters
1.In vpltage:100-120V AC 50Hz/60Hz,
200-240V AC 50Hz/60Hz;
2.Output voltage:100-120V AC 50Hz/60Hz,
200-240V AC 50Hz/60Hz;
2.5V 3.5V 4.5V 5.5V 6.5V 7.5V 12V AC
3.Charging voltage:5V DC
4.Engine power:28V 1.5A DC;
5.Light:5/16W 24V DC;
6.Fuse:5A 130/250V AC;
7.No load power:1W
8.Pressure test:2KV
9.Working mode:S1
10.Main wire:10A 120V/250V;
11.Working temperature:-10℃~+40℃
12.Relative humidity:less than 90%
Installation Dimension
Figure size:1348mm*1274mm*1556mm(No contain table top and light)
Weight:125kgs
